Take to the Trails

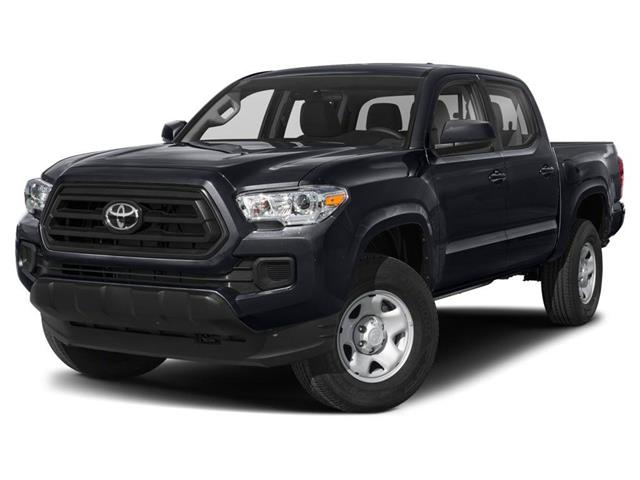

Based on the best-selling SR5 grade and only available in 4×4 Double Cab, Tacoma Trail Edition gets additional lift both at the front and rear of the truck to help tackle the road less traveled.

Toyota engineers lifted the front of the new Tacoma Trail 28 mm and the front air dam found on the standard SR5 is deleted to help improve ground clearance. This means the approach angle of the truck improves to 34 degrees. The rear suspension is lifted 13 mm which helps level the truck’s profile and improve departure angle to 23.6 degrees. Breakover angle is also improved to 26.4 degrees.

Based initially on SR5 4×4, Tacoma Trail Edition gets upfitted with a standard locking rear differential to offer added traction when it’s needed most in slow-speed four-wheel-drive situations. Reinforcing the fact that some of the most important parts are the ones you don’t see, the undercarriage skid plates are borrowed from the TRD Off-Road grade to provide added protection.

Style and Function Collide

Tacoma Trail Edition offers distinctive styling to set it apart from the lineup. Two exterior colour choices are available: Lunar Rock (a new Trail Edition option) and Army Green. Regardless of paint choice, black exterior badging accents the truck, a new Trail Edition badge is fitted on the rear tailgate, and the rear bumpers are now colour-keyed to match the exterior paint colour.

Tacoma Trail Edition greets paved and unpaved roads with the heritage-inspired grille first found on TRD Pro, but this grille stands apart thanks to its unique bronze-coloured lettering. The bronze-accented grille nicely complements the new bronze-finished wheels that are adorned with a Toyota centre cap. More than just looks, the wheels offer a 13 mm wider track width both front and rear for a broader stance, and they are fitted with new Goodyear all-terrain tires that feature an aggressive sidewall tread pattern.

Added versatility in the truck bed comes in two forms: storage and power. Lockable bed storage means gear can be safely stored when in transit or away from the vehicle. Trail is also equipped with a 120V power outlet in the bed, adding additional power options for whatever needs arise away from home.

Tacoma Trail Edition comes standard with a 3.5-litre V6 engine that produces 278 horsepower and 265 lb-ft of torque. The engine features Toyota’s VVT-iW technology and Atkinson-cycle combustion to help maximize efficiency, and it also employs Toyota’s D-4S fuel injection system that incorporates both direct injection and port injectors.

The Tacoma Tow Package comes standard on Tacoma Trail Edition, with a maximum towing capacity of 6,400 pounds (per the SAE J2807 tow standard). The package includes a Class IV towing receiver hitch, engine oil cooler, transmission fluid cooler (automatic transmission only), power steering cooler, 130-amp alternator, 4- and 7-pin connector with convertor, and Trailer-Sway Control (TSC).

TSS-P: Standard Safety on All Tacomas

Although the Tacoma Trail Edition gains some added off-road performance thanks to its lift, that doesn’t mean that Tacoma’s standard safety features were forgotten. TRD engineers ensured the Toyota Safety Sense P (TSS-P) features are all standard. TSS-P includes Pre-Collision System with Pedestrian Detection, High-Speed Dynamic Radar Cruise Control, Lane Departure Alert, and Automatic High Beams.
